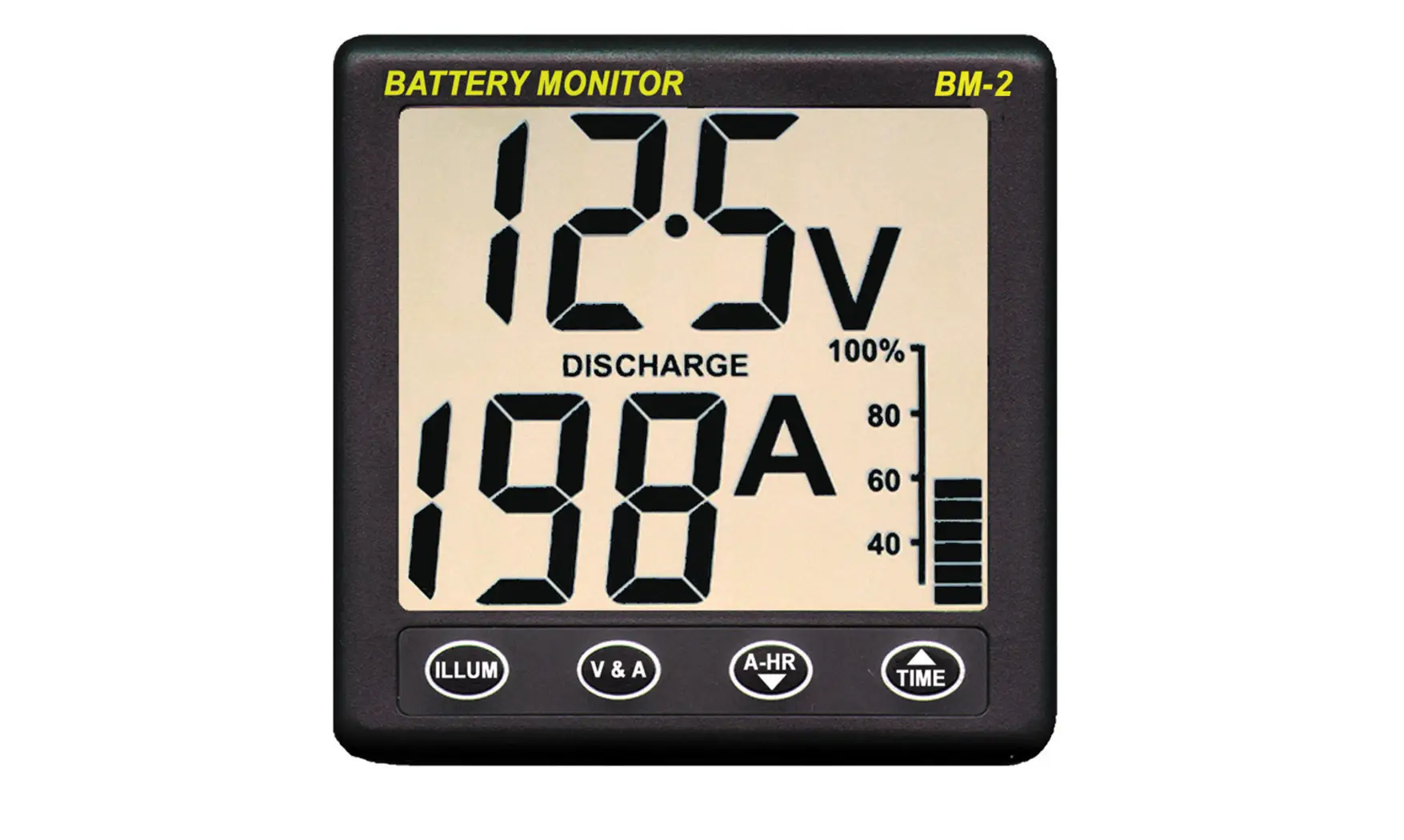

Clipper BM-2 battery monitor

Reference : NMCBM-2

The BM-2 is designed to monitor performance of 12 volt lead acid battery systems with capacities of up to 999 Amp hours. It is supplied complete with a precision 200 AMP shunt and a prefabricated cable assembly to enable simple DIY installation. The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the batteries state of charge and the time to charge or discharge. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure.

Specifications

Supply voltage 8 – 16 Volts DC
Supply current 1.5 milliamps
Battery capacities 5 – 999 AMP Hour
Load current 199 AMPS Maximum
Charge current 199 AMPS Maximum
Shunt Standard 50 millivolt @ 200 AMP
Cables supplied:

200 AMP shunt link to M8 Ring terminal.
5 Metre from display unit to battery – fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery.
Display unit

Standard 110mm square Clipper case. High contrast LCD, backlit for night viewing.
Minimum voltage visual alarm
Simple operation – 4 keys to select backlight, Volt/Amp/State of Charge screen,
AMP hours or Time to run.

Options

189.00 EUR
